Martin Logan Dynamo 1100X

En ultimat kapabel 12 tommer backet opp med 1100 watts ML forsterker, og komplett DSP, programmerbar via mobiltelefon, kalibrert av medfølgende mikrofon.

Ta kontakt via skjemaet under for pris

På lager

Forespør et pristilbud for dette produktet:

  • Produktinfo
  • Produktanmeldelser (0)

ynamo 1100X features a 1,300 Watt (peak) amplifier, 12-inch audiophile grade woofer, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC®), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music and home theater experience.

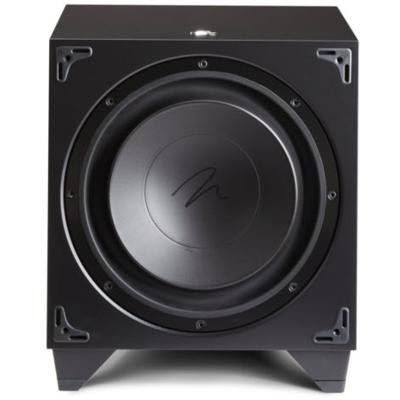

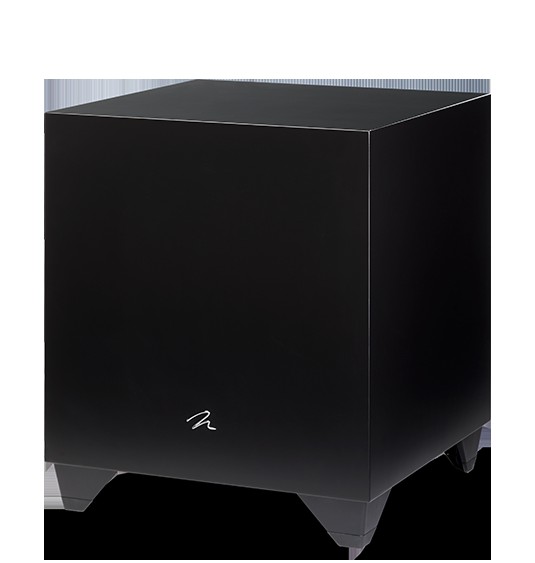

Dynamo 1100X
Product Highlights

  • 12-inch inverted surround poly cone woofer
  • 1,300 Watts (peak) amplifier
  • Sealed non-resonant cabinet
  • Digital control system via smartphone app
  • Anthem Room Correction (ARC®) via smartphone app or PC
  • Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
  • Configurable front or down-firing design
  • SWT-X Wireless Receiver & Transmitter (sold separately)

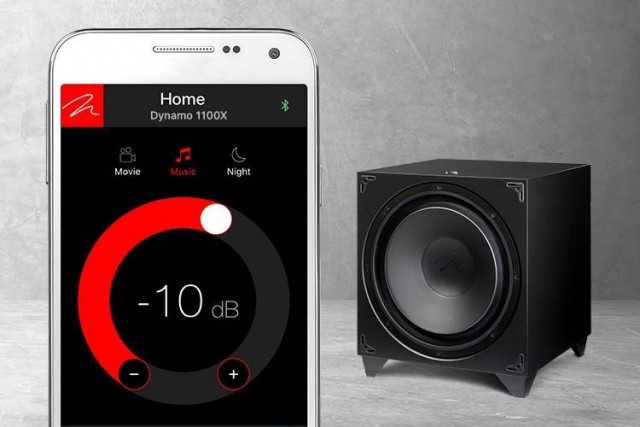

MARTINLOGAN SUB CONTROL APP
(AVAILABLE FOR iOS AND ANDROID)

MartinLogan’s Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 20–30Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20–120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.

Click here for more details





Specifications

Specifications are subject to change without notice

Frequency Response

22–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance

RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)
XLR: 28,000 Ohms (pin 2 to 3)

Low Frequency Transducer

12” (30.5cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier

650 Watts (1,300 peak)

Software

Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC

Room Correction

Anthem Room Correction (ARC)

Controls (Backplate)

Level: Min–Max
Setting Control: Local, App
Power Mode: On, Trigger, Auto

Controls (via Bluetooth)

Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)

Inputs (Audio)

Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks XLR: LFE

Inputs (Audio, Wireless)

SWT-X Receiver & Transmitter (sold separately)

Inputs (Other)

USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 5–24 DC

Power Draw

Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W

Feet

Rubber, ETC (Energy Transfer Coupler) Spikes

Weight

46 lbs. (20.9 kg)

Dimensions (HxWxD), Front-Firing

17.2" x 15" x 16.2"
(43.6 cm x 38cm x 41.1cm)

Dimensions (HxWxD), Down-Firing

17.1" x 15 " x 15.6 "
(43.5 cm x 38cm x 39.6 cm)
