Frequency Response
|
46–25,000 Hz ±3dB
|
Recommended Amplifier Power
|
20—200 watts per channel
|
Horizontal Dispersion
|
80°
|
Vertical Dispersion
|
80°
|
Sensitivity
|
90 db/2.83 volts/meter
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
Crossover Frequency
|
500 & 2,600 Hz
|

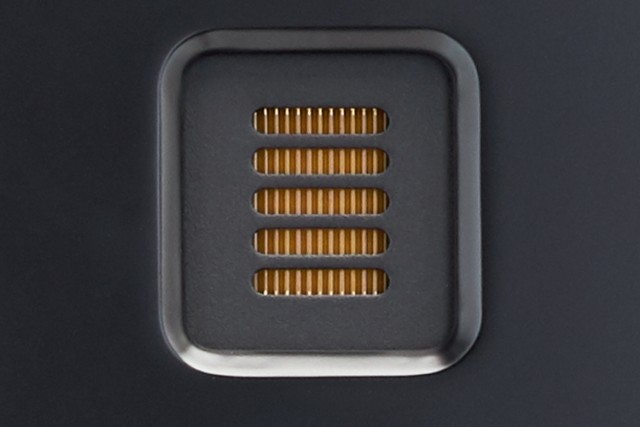

High Frequency Transducer
|
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
|

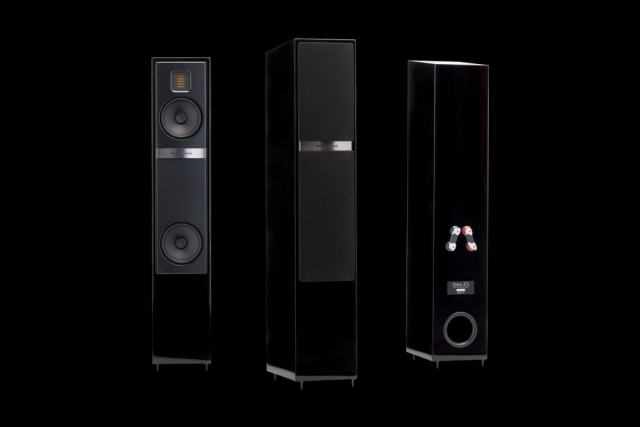

Low Frequency Transducer
|
Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
|
Components
|
Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel
|

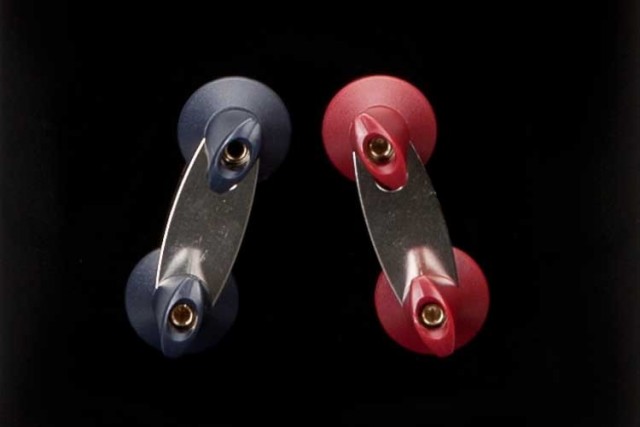

Inputs
|
Custom 5-way bi-wire tool-less binding posts
|
Weight
|
37 lbs. (16.8 kg)
|
Dimensions
|
92.9cm x 17.3cm x 29.7cm
|
